Product Description
Miniature Magnetic Gear Pump, crafted from Stainless Steel 316, is specifically designed for filling and chemical metering pumps, and is also suitable for cooling circulation systems. This pump is an ideal choice for the field of liquid transfer due to its efficiency, precision, and durability.

Specification Options

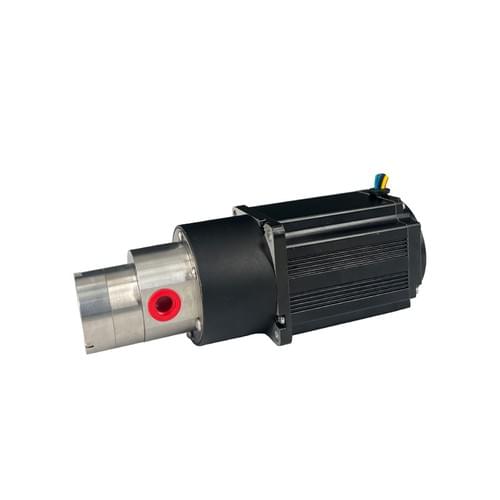

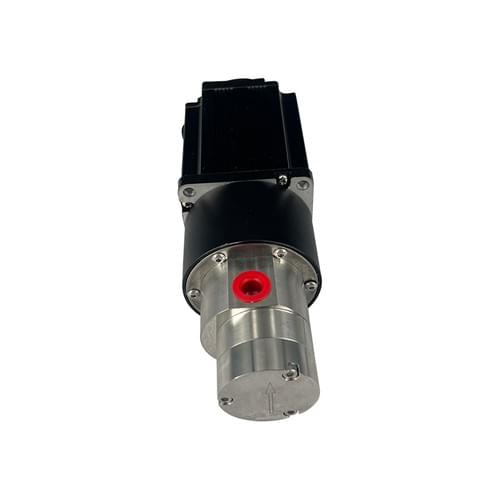

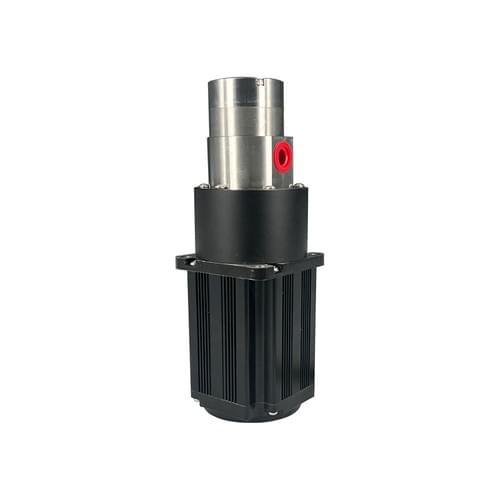

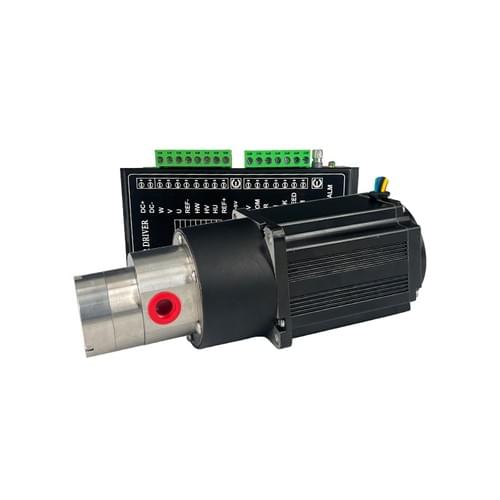

1、WSFSGE0.9DCM57-24-150W - Complete pump unit including the driver.

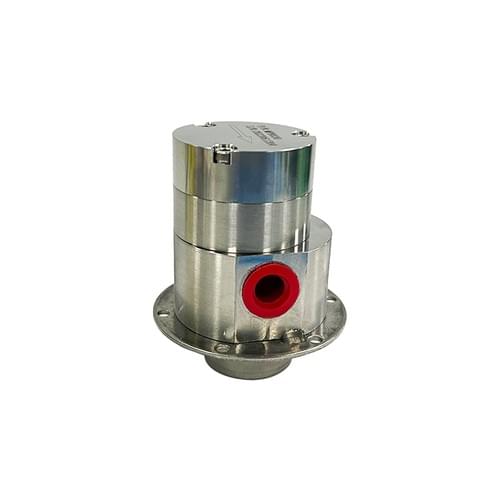

2、WSFSGE0.9 Pump Head - Pump head only, with the option to self-equip a motor.

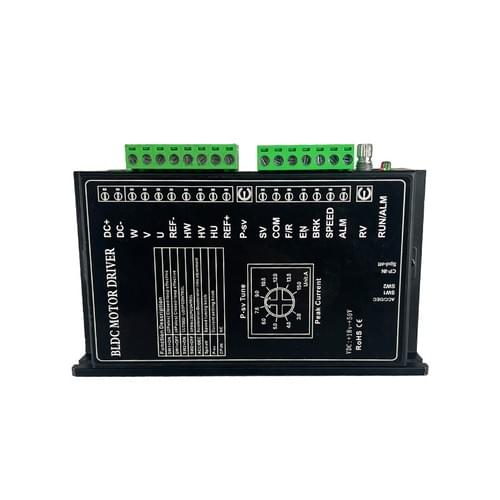

3、Brushless Motor Driver - Designed specifically for the pump head for efficient control.
Other Parameters
Rated Power: 0.15kw
Voltage: 24V
Rated Flow Rate: 0.9ml/rev
Rated Head: 100m
Inlet Size: G1/8
Weight: Please contact customer service
Working Pressure: Please contact customer service
Geometric Displacement: 0.9ml/r
Outlet Pressure: 15bar
Application Scenario: Liquid transfer
Connection Method: Direct connection
Maximum Flow Rate: 0.243
Pump Body Material: Stainless Steel 316
Drive Method: Magnetic drive
Displacement: 0.9ml/rev
Flow Range: 0-4.05L/min
Pressure: 15bar
Motor: Brushless DC motor
Speed: 500-4500rpm
Motor Power: 150W
Rated Voltage: 24V
Rated Current: 6A
Inlet and Outlet Direction: On both sides of the pump body
Inlet and Outlet Threads: G1/8
Temperature Range: -40℃-120℃
Pump Body Material: 316L
Static Seal Material: PTFE
Gear Pump Material: PEEK
Application Fields
This miniature magnetic gear pump is powered by an advanced brushless DC motor and equipped with a brushless motor driver, which not only achieves efficient motor control but also features speed measurement, adjustable speed, and reversible functions. By connecting with an upper computer, intelligent control can be realized, making it particularly suitable for working environments that require frequent starts and stops, such as precise liquid filling.

The application range is extensive, including but not limited to:

Food and beverage industry
Automatic car wash machines
Cosmetics manufacturing
Mechanical coding equipment
Life science research
Chemical product metering and transfer
Its precise design and durable materials ensure reliability and longevity in various industrial applications. Whether it's a laboratory environment that requires precise control or food processing with high demands for hygiene and corrosion resistance, this pump can meet your needs.
