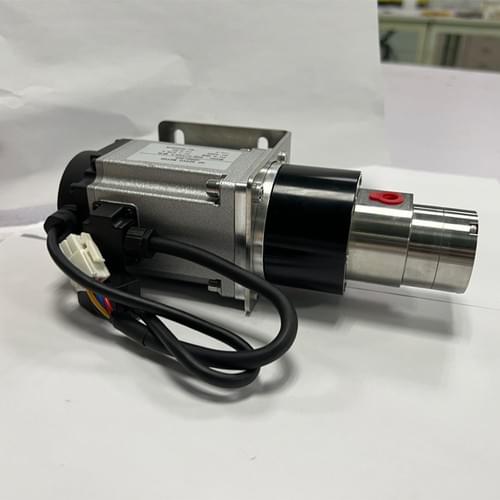

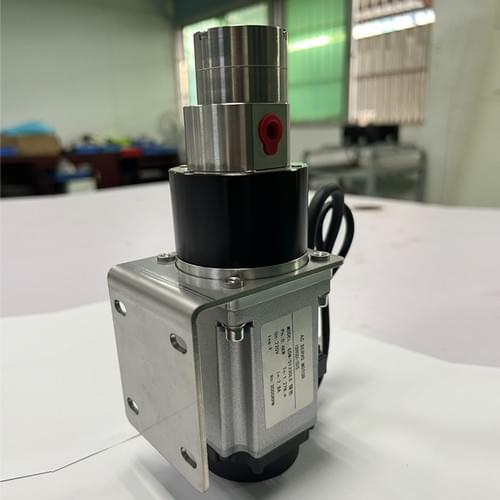

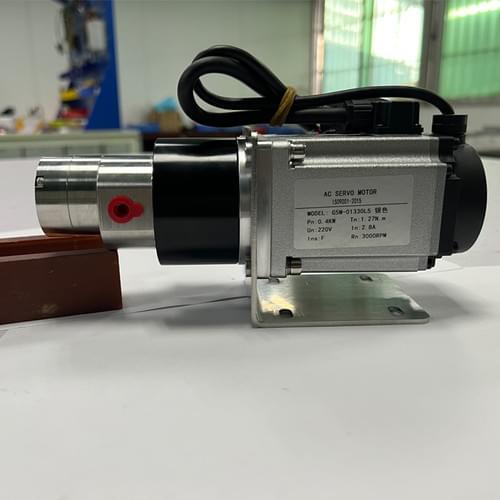

Model: WSFSGE0.9-400W Servo Motor (with Drive)

High-Performance Gear Pump, Designed for Precise Liquid Transfer

Core Features:

Servo Motor Drive: Equipped with a 400W servo motor and driver for precise speed control, suitable for working environments with frequent start-stops.
Rated Power: 400W, providing stable power output.
Rated Flow Rate: 4L/min, ensuring continuous and stable liquid flow.
Rated Head: 100 meters, meeting high head requirements.
Voltage: 220V, compatible with standard voltage requirements.
Inlet Size: G1/8, facilitating pipeline connection.
Working Pressure: Atmospheric pressure, suitable for a wide range of working pressure environments.
Geometric Displacement: 0.9 milliliters/revolution, precisely controlling the liquid volume per rotation.
Outlet Pressure: 1.5Mpa, providing sufficient pressure output.
Temperature Range: -40°C to 120°C, adaptable to different working temperatures.
Pump Body Material: 316L stainless steel, corrosion-resistant, suitable for various chemical liquids.
Static Seal Material: PTFE, offering excellent sealing performance.
Gear Pump Material: PEEK, chemical-resistant, and wear-resistant.
Technical Parameters:

Displacement: 0.9ml/rev, ensuring accurate liquid measurement.
Flow Rate: 0-5.4L/min, adjustable to meet different flow requirements.
Pressure: 15bar, satisfying the needs of high-pressure liquid transfer.
Motor Speed: 0-6000rpm, a wide speed range to accommodate various applications.
Rated Current: 2.5A, ensuring stable motor operation.
Inlet and Outlet Direction: On both sides of the pump body, convenient for pipeline layout.
Inlet and Outlet Threads: G1/8, standardized interface design.
Application Scenarios:

Liquid Transfer: Suitable for precise liquid transfer in fields such as cosmetics, chemical metering, and life sciences.
Precision Filling: Particularly suitable for precise filling work that requires frequent start-stops, such as cosmetic filling.
Product Advantages:

Intelligent Control: Connection with the upper computer can achieve intelligent control, enhancing operational convenience and precision.
Durability: High-quality materials ensure the pump body's durability and stability during long-term operation.
Versatility: Suitable for a variety of liquid transfer scenarios, including but not limited to chemical industry, cosmetic production, and life science experiments.
The WSFSGE0.9-400W servo motor gear pump is the perfect solution for your liquid transfer needs, offering excellent performance and reliability whether for precise metering or high-pressure transfer.

Product Description:

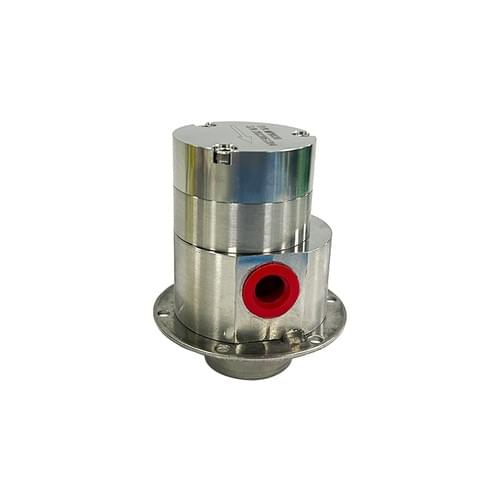

Model Specification: WSFSGE0.9 Pump Head

Rated Power (kW): Please consult customer service for details.
Rated Flow Rate (m³/h): 0.9ml/revolution.
Rated Head (m): Please consult customer service for details.
Voltage (V): Please consult customer service for details.
Inlet Size: G1/8, facilitating easy connection to standard tubing and fittings.
Working Pressure (Mpa): Atmospheric pressure, suitable for a wide range of applications without excessive pressure requirements.
Geometric Displacement (cm³/rev): Information not provided; please consult customer service for details.
Outlet Pressure (Mpa): Information not provided; please consult customer service for details.

Application Scenarios:

Liquid Transfer: Ideal for applications in various industries requiring the precise and reliable transfer of liquids.
Features:

Servo Motor Drive: Powered by a servo motor, this pump is designed for high-precision control of rotational speed, making it perfect for applications that require exacting standards.
Speed Control: The integrated servo motor driver allows for precise speed regulation, including speed measurement, adjustable RPM, and the ability to operate in both forward and reverse directions.
Intelligent Control: Capable of connecting with higher-level control systems for intelligent control, enhancing automation and process efficiency.
Ideal for Frequent Starts and Stops: Particularly suited for operations that involve frequent initiation and cessation of the pumping process, such as precise liquid filling.
Fields of Application:

Cosmetics: Used in the filling and metering of cosmetic products where precision and hygiene are paramount.
Chemical Metering: Reliable for precise chemical dosing in various industrial processes.
Life Sciences: Employed in scientific research and applications where the controlled dispensing of liquids is crucial.
The WSFSGE0.9 pump head is a versatile and high-performance solution for liquid transfer, designed to meet the demands of industries that require meticulous control over their processes. With its advanced servo motor and driver, it offers a level of precision and reliability that is essential in today's competitive markets. For specific power, head, and voltage information, please reach out to our customer service team to get detailed specifications tailored to your needs.
