Product Overview:

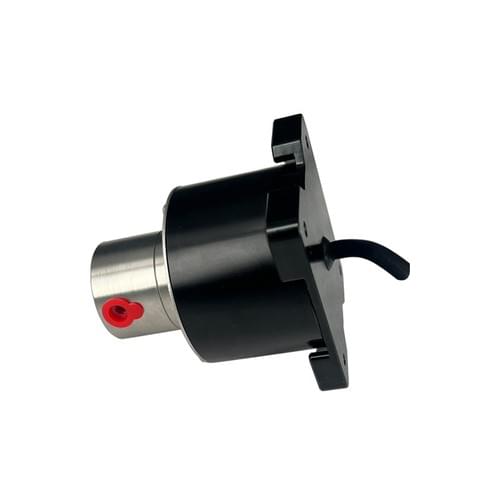

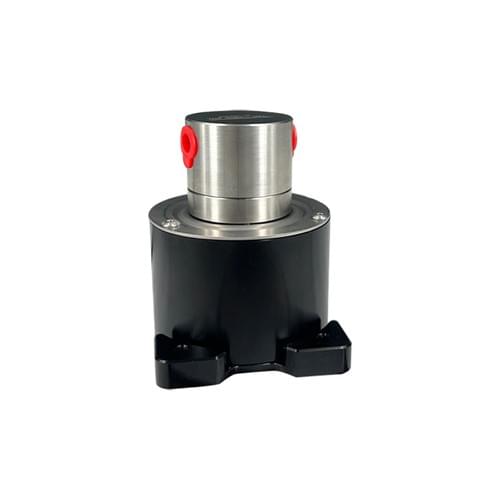

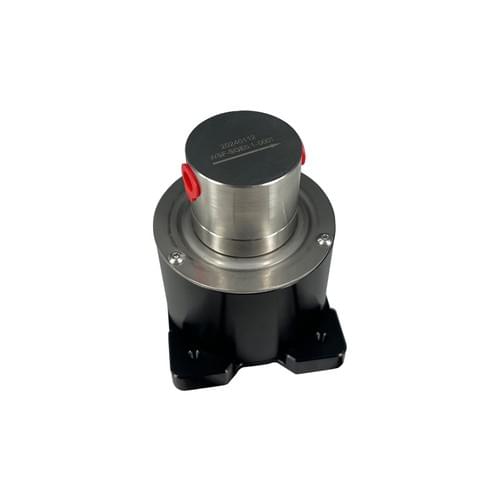

This high-pressure micro gear pump is designed for industrial applications that require high-precision fluid control. It utilizes advanced magnetic drive technology to ensure efficient, quiet, and long-lasting operation. This pump is a perfect alternative to MICROPUMP and is particularly suitable for digital printing machines, inkjet printers, and applications that require a cooling pump.

Key Features:
High-pressure performance: Capable of providing up to 3 Mpa of outlet pressure to meet high-pressure requirements.
Micro design: Compact size and lightweight (670g) for easy integration and portability.
Self-priming capability: Excellent self-priming performance suitable for various fluid media.
Corrosion-resistant materials: Pump body made of stainless steel 316 and gears made of PEEK for strong corrosion resistance.
Brushless DC motor: Equipped with a brushless DC motor, offering a wide range of speed adjustment from 1000 to 4500 rpm.
Magnetic drive: Contactless magnetic drive reduces wear and improves pump reliability and lifespan.

Technical Specifications:
Rated Power: 40W
Rated Flow Rate: 0-450ml/h (WSFSGE0.1DCB66-24-40W) or 0-675ml/h (WSFSGE0.15DCB66-24-40W)
Rated Head: 250m
Rated Voltage: 24V
Inlet Size: G1/8
Max Flow Rate: 450ml/min
Max Head: 300m
Connection Type: Direct connection
Max Differential Pressure: 30bar
Motor Power: 40W
Rated Current: 1.6A
Inlet/Outlet Direction: Both sides of the pump body
Inlet/Outlet Thread: G1/8
Temperature Range: -40-80℃
Static Seal Material: Nitrile Rubber
Displacement: 0.1ml/rev

Applications:
Digital printing machines: Provides stable cooling and fluid transfer for digital printing machines.
Inkjet printers: Suitable for ink circulation and supply in inkjet printers.
Large servers: Used in cooling systems for servers to maintain stable operation.

Product Advantages:
Efficient magnetic drive technology ensures quiet operation and long lifespan.
Micro design for easy integration into various devices.
Corrosion-resistant materials suitable for conveying various fluid media.
Brushless DC motor provides a wide range of speed adjustment to meet different application needs.
Suitable for industrial applications that require high-pressure fluid transfer.

This high-pressure micro gear pump is the ideal choice for digital printing machines, inkjet printers, and industrial applications that require a cooling pump, thanks to its excellent performance and reliability.
