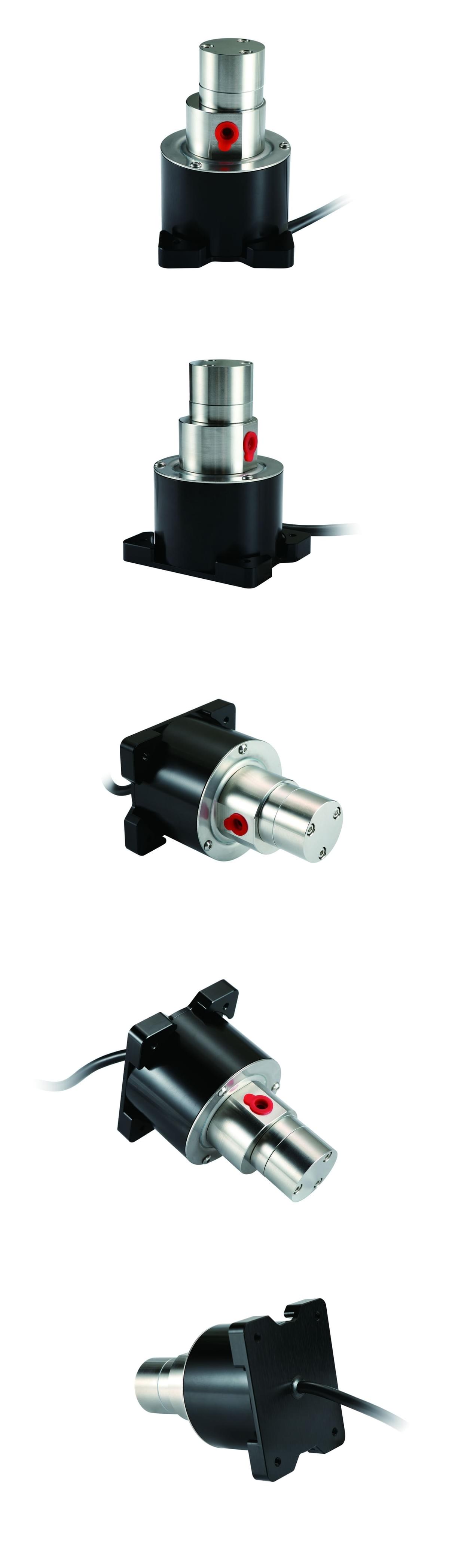

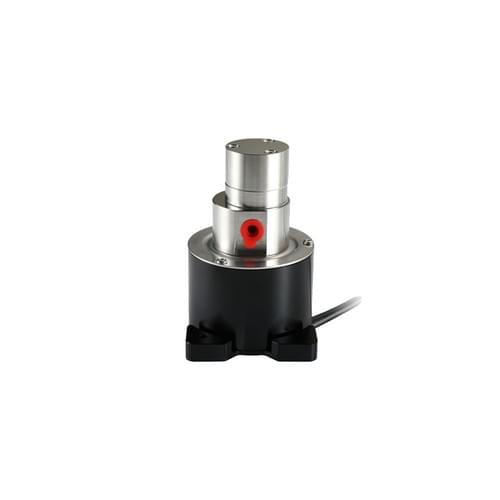

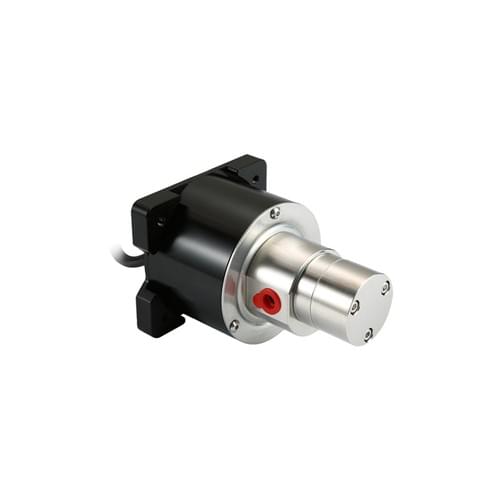

Product Description: This miniature food-grade high-precision magnetic gear pump, model WSFSGE0.3DCB66-24-40W, is designed specifically for the chemical industry, offering an accurate liquid filling and metering solution. It features magnetic drive technology to ensure safety and reliability during the transfer process while eliminating the risk of dynamic transfer leakage. The pump body is made of corrosion-resistant and high-temperature-resistant stainless steel 316L, and the gear material is PEEK, ensuring stability and durability in various environments.

Key Features:

• Food-Grade Material: Suitable for the food, chemical, and pharmaceutical industries, meeting strict hygiene and safety standards.
• High-Precision Metering: Ensures the accuracy of liquid filling and metering.
• Magnetic Drive: Reduces leakage risk, enhancing the safety of the transfer process.
• Stainless Steel 316L Pump Body: Corrosion-resistant, high-temperature resistant, suitable for various working environments.

Technical Specifications:

• Rated Flow Rate: 0~1.35L/min
• Rated Head: 50m
• Weight:
• Outlet Pressure: 3bar
• Application Scenario: Chemical industry
• Rated Power: 0.04kw
• Voltage: 24V
• Displacement: 0.6ml/rev
• Motor: Brushless DC motor
• Speed: 1000~4500 rpm
• Motor Power: 40W
• Rated Current: 1.6A
• Inlet/Outlet Direction: On both sides of the pump body
• Inlet/Outlet Thread: G 1/8
• Temperature Range: -40~70℃
• Static Seal Material: PTFE
• Gear Material: PEEK

Product Advantages:

• Special PEEK+High-Strength Ceramic Gears: Corrosion-resistant, high-pressure difference, pulse-free, long life.
• Magnetic Drive Technology: Ensures the safety and leak-free of the transfer process.
• Brushless DC Motor: Provides stable power output while reducing energy consumption.

Application Range:

• Suitable for liquid transfer in the chemical industry, such as chemical reagents and solvents.
• Suitable for liquid filling in the food industry, such as milk, beverages, and alcohol.
• Suitable for precise metering and transfer in the pharmaceutical industry.

This miniature gear pump, with its outstanding performance and reliability, has become an ideal choice for liquid transfer and metering in the chemical, food processing, and pharmaceutical production industries, ensuring high efficiency in the production process and high standards of product quality.
