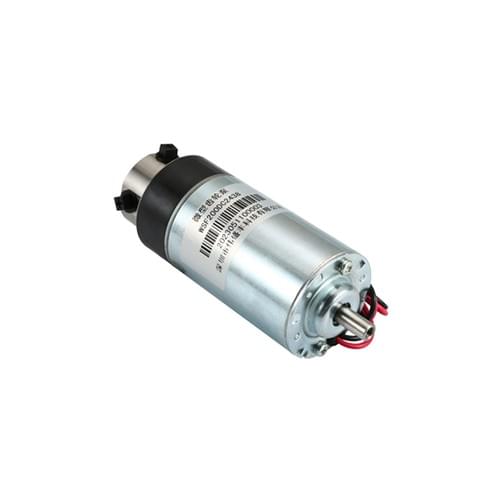

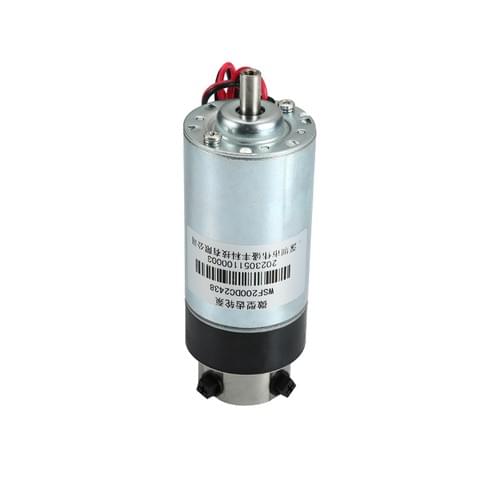

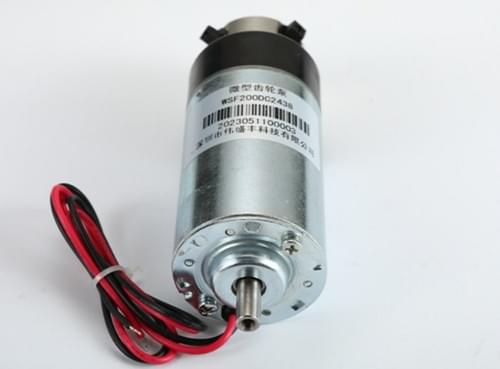

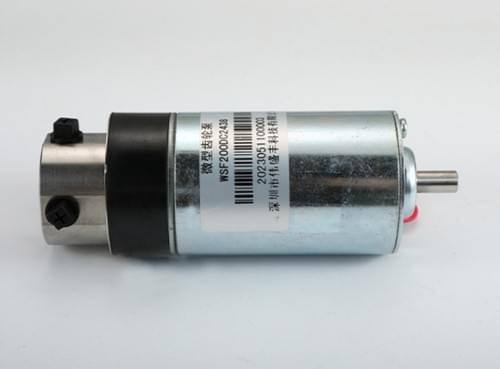

Product Name: Food-Grade Mini Gear Pump WSF200DC2438

Product Description:
Introducing our Food-Grade Mini Gear Pump, designed specifically for the food and beverage industry to ensure hygiene and safety during liquid transfer. With its high-precision gear design, this pump offers accurate metering capabilities, making it suitable for various liquid filling and spraying operations. The pump body is made of corrosion-resistant and hygienic stainless steel 304, while the gears are made of PEEK and the static seals are made of PTFE, ensuring durability and reliability.

Specifications:

Rated Power: 0.04 kW
Flow Rate: 1.8 L/min
Head: 10 m
Voltage: 24 V
Inlet Size: G1/8
Weight: 0.8 kg
Outlet Pressure: 5 bar
Application: Liquid Transfer
Working Pressure: 0.5 bar
Displacement: 0.8 ml/rev
Flow Rate: 2.4 L/min
Motor: DC Brushed Motor
Speed: 3000 rpm
Motor Power: 30 W
Rated Voltage: 24 V
Viscosity Range: 0.2-3000 cps
Temperature Range: -10°C to 50°C
Pump Body Material: Stainless Steel 304
Gear Material: PEEK
Static Seal Material: PTFE
Inlet/Outlet Thread: G1/8

Product Features:

Compact and lightweight design for easy installation and maintenance
PEEK gears and shaft sleeve for resistance to organic solvents, corrosion, and high friction
High-precision metering capability for precise control of liquid flow
Suitable for food-grade applications, ensuring food safety and hygiene

Applications:

Fructose machine: Used for precise control of fructose dosage
Packaging machine: Ideal for accurate liquid filling in packaging processes
Filling machine: Suitable for various beverage and liquid food filling operations
Automatic stir-fry machine: Enables precise oil spraying and seasoning addition during cooking

With its high precision, corrosion resistance, and food-grade safety, this Mini Gear Pump is the perfect choice for liquid transfer in the food and beverage industry.
