Product Description:

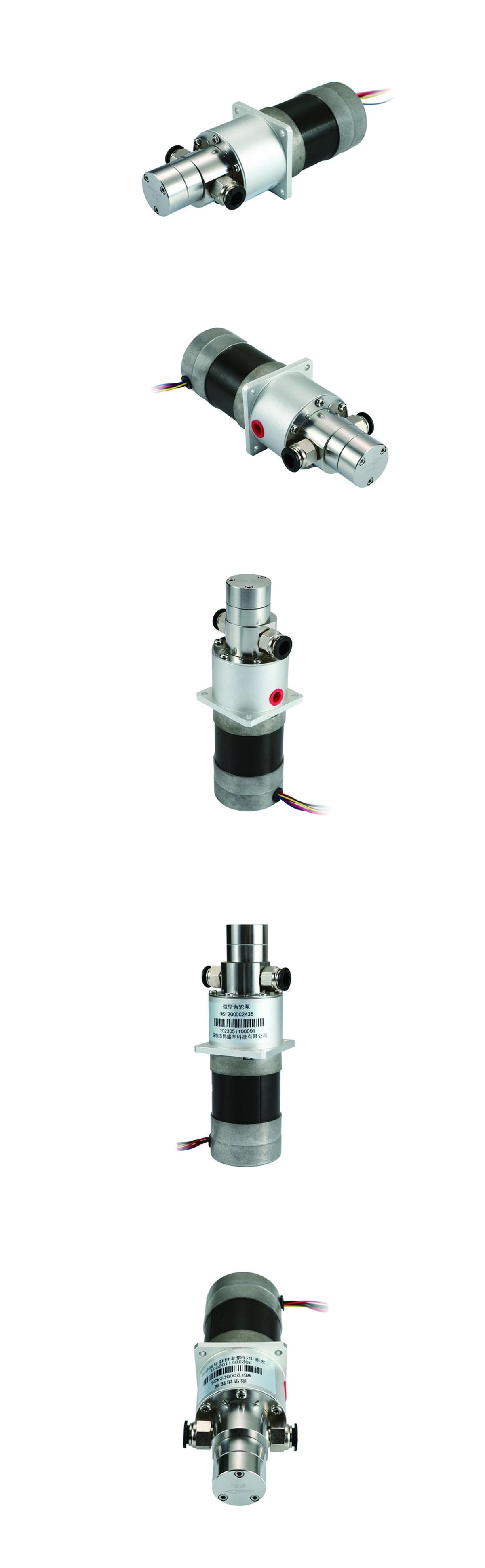

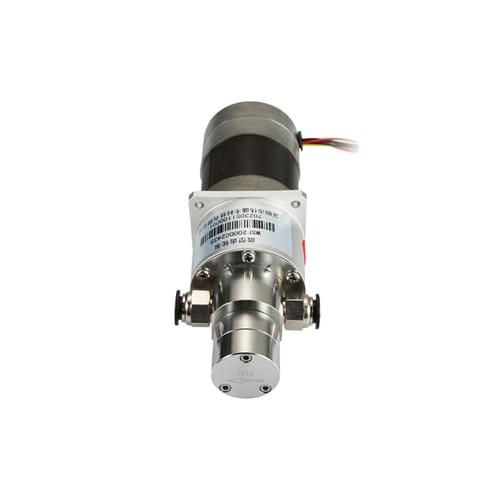

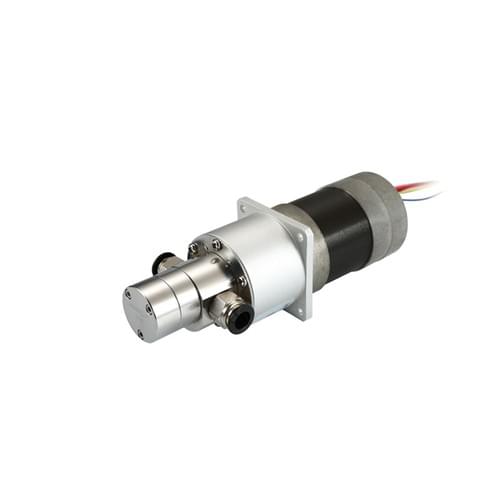

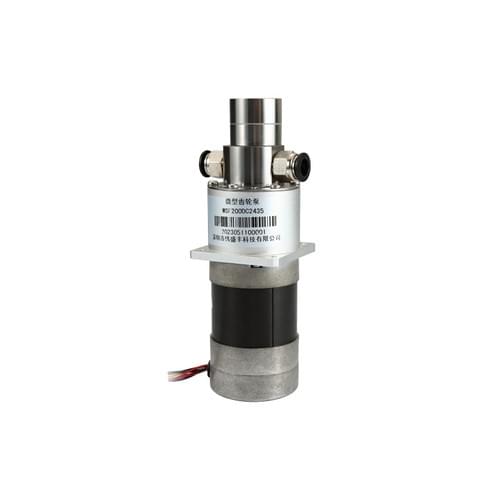

This miniature stainless steel gear pump WSF200DC2435 is designed specifically for the food filling industry, offering an efficient and durable liquid metering pump. With magnetic drive technology, it ensures no leakage risks during the transfer process while maintaining the purity of the liquid. The pump body is made of corrosion-resistant stainless steel 304/316L or Hastelloy, suitable for a wide range of temperatures and viscosities, from -10°C to 120°C, with a viscosity range of 0~1500cps.

Key Features:

Miniature design suitable for applications with limited space
Magnetic drive to eliminate dynamic transfer leakage risks
Corrosion-resistant stainless steel pump body and PEEK gear material, suitable for various liquids
High-precision flow control, adjustable flow rate from 0 to 3L/min
Brushless DC motor, 60W power, high efficiency, and long life
Direct connection installation method, simplifying the installation process
Connection size G1/8, convenient for connecting with other equipment
Outlet pressure of 3bar, meeting most filling requirements
Compact size, diameter 57mm, height 177.5mm, easy to integrate
Light weight, only 1.65kg, easy to move and install
Technical Specifications:

Rated Power: 0.06kW
Rated Flow Rate: 0 to 3L/min
Rated Head: 50m
Connection Size: G1/8
Outlet Pressure: 3bar
Application Scenario: Food Filling
Pump Body Material: Stainless Steel 304/316L or Hastelloy
Gear Material: PEEK
Displacement: 0.6ml/rev
Flow Rate: 0 to 180L/H (0 to 3L/min)
Speed: 0 to 6000rpm
Motor Model: 57 Brushless DC Motor
Motor Power: 60W
Rated Current: 1.4A
Rated Voltage: 24V
Static Seal Material: EPDM/PTFE
Application Fields:
The miniature gear pump is widely used in the food, beverage, and alcohol industries, especially suitable for precise metering and filling of liquids such as milk, juice, and beer. Its corrosion resistance and high pressure difference characteristics also make it an ideal choice for liquid transfer in chemical and pharmaceutical industries.

Choose our miniature stainless steel gear pump for a reliable, efficient, and easy-to-maintain liquid transfer solution.
