Precision Food-Grade Miniature Gear Pump for Reliable Liquid Transfer in the Food Industry
$280.00
Product Description:

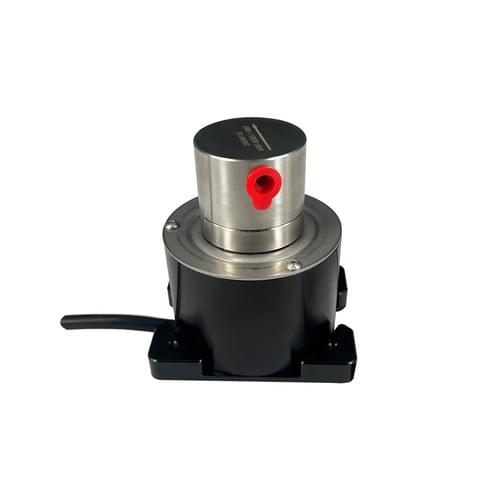

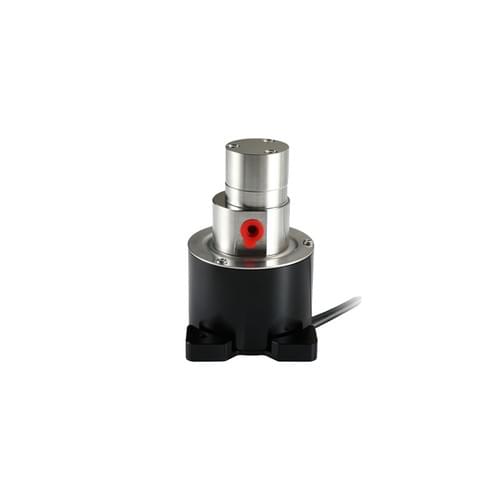

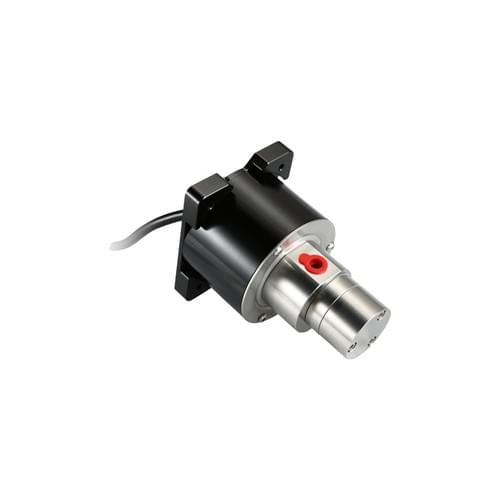

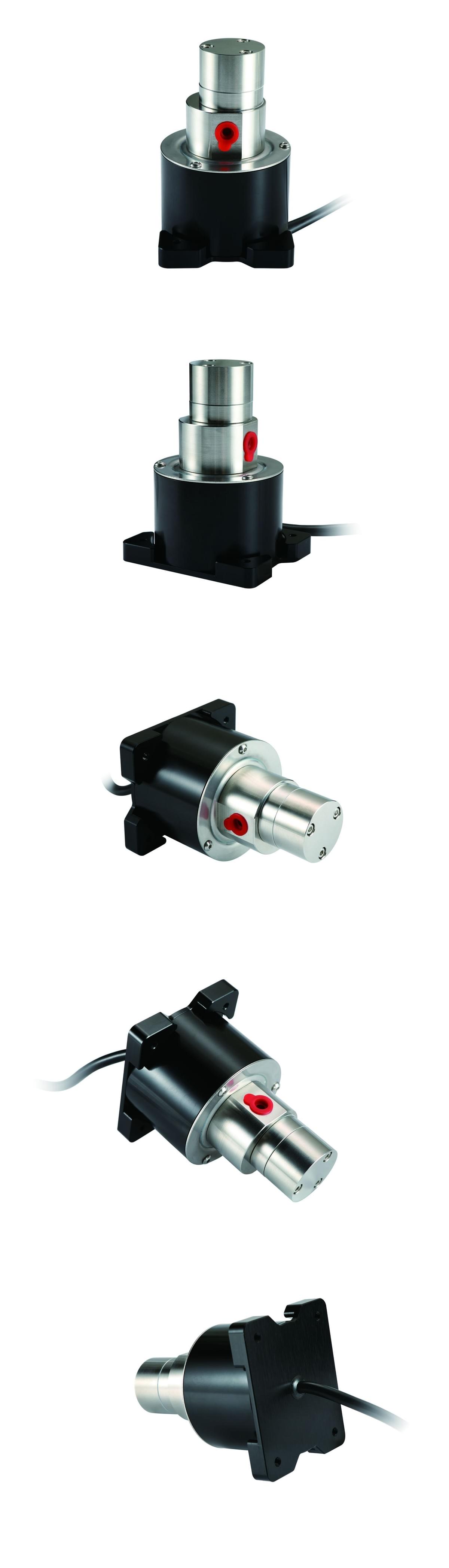

This miniature food-grade gear pump, model WSFSGE0.6DCB66-24-40W, is specifically designed for high-precision filling and metering in the food industry. It features magnetic drive technology to ensure safety and reliability during the transfer process, while eliminating the risk of dynamic transfer leakage. The pump body is made of corrosion-resistant and high-temperature-resistant stainless steel 316L, and the gear material is PEEK, ensuring stability and durability in various environments.
Product Description: This miniature food-grade gear pump, model WSFSGE0.6DCB66-24-40W, is specifically designed for high-precision filling and metering in the food industry. It features magnetic drive technology to ensure safety and reliability during the transfer process, while eliminating the risk of dynamic transfer leakage. The pump body is made of corrosion-resistant and high-temperature-resistant stainless steel 316L, and the gear material is PEEK, ensuring stability and durability in various environments.
Key Features:
High Precision: Ensures accuracy in filling and metering.
Food Grade: Suitable for the food industry, meeting food safety standards.
Magnetic Drive: Reduces leakage risk, enhancing safety.
Stainless Steel 316L Material: Corrosion-resistant, high-temperature resistant, suitable for various working environments.
Brushless DC Motor: Energy-efficient, low noise.
Technical Specifications:
Rated Flow Rate: 0~2.7L/min
Rated Head: 50m
Weight: 0.735kg
Outlet Pressure: 3bar
Rated Power: 0.04kw
Voltage: 24V
Displacement: 0.6ml/rev
Motor Power: 40W
Rated Current: 1.6A
Speed: 1000~4500 rpm
Inlet/Outlet Direction: On both sides of the pump body
Inlet/Outlet Thread: G 1/8
Temperature Range: -40~70℃
Static Seal Material: PTFE
Application Scenarios:
Suitable for liquid transfer in the food industry, such as milk, beverages, and alcohol.
Suitable for metering and filling in chemical and pharmaceutical industries.
Product Advantages:
Special PEEK+High-Strength Ceramic Gears: Corrosion-resistant, high-pressure difference, pulse-free, long life.
Magnetic Drive Technology: Ensures the safety and leak-free of the transfer process.
High Precision Control: Suitable for occasions that require precise metering.
Brushless DC Motor: Provides stable power output while reducing energy consumption.
This miniature gear pump, with its outstanding performance and reliability, has become an indispensable piece of equipment in food processing and filling production lines, ensuring high efficiency in the production process and high standards of product quality.
