In industrial production, precise liquid transfer and metering are key requirements in many industries, especially those with strict measurement accuracy such as chemicals, cosmetics, and life sciences. To meet these demands, the combination of a gear pump and servo motor has become an ideal solution. In this blog, we will introduce the specifications of the WSFSGE0.9-400W servo motor gear pump and analyze its technical parameters and application scenarios.
Product Specifications and Technical Parameters

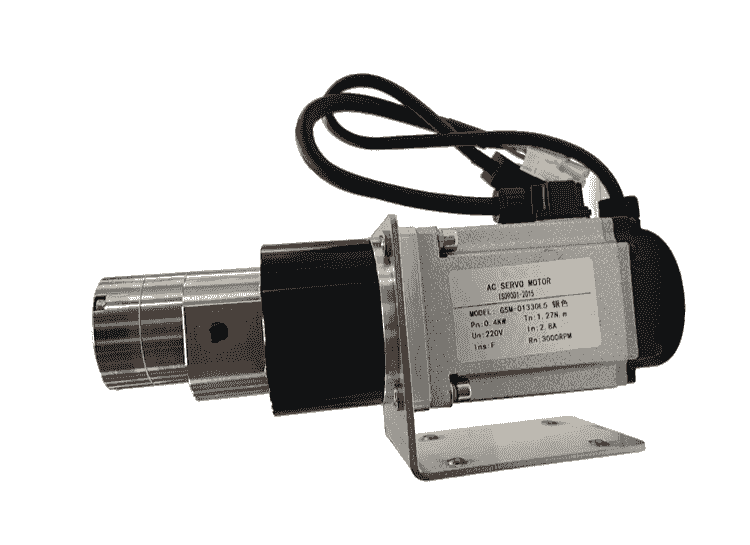

Model: WSFSGE0.9-400W Servo Motor (with driver)
Rated Power (kW): 400W
Rated Flow (m³/h): 4L/min
Rated Head (m): 100 meters
Voltage (V): 220V
Geometric Displacement (cm³/rev): 0.9ml/r
Inlet Size: G1/8
Outlet Pressure (Mpa): 1.5Mpa
Flow Range: 0-5.4L/min
Operating Pressure: Atmospheric pressure
Speed Range: 0-6000rpm
Rated Current: 2.5A
Inlet/Outlet Direction: Both sides of the pump body
Inlet/Outlet Thread: G1/8
Temperature Range: -40°C to 120°C
Pump Body Material: 316L Stainless Steel
Static Sealing Material: PTFE
Gear Pump Material: PEEK
Application Scenarios: Liquid transfer, chemical metering, cosmetics filling, etc.
Servo Motor Drive: The Core of Precision Control
This gear pump is powered by a servo motor combined with a driver, allowing for precise control of the pump's speed. The servo motor features speed sensing, adjustable speed, and forward/reverse rotation functions, making it particularly suitable for applications requiring frequent starts and stops, such as precise liquid filling. When connected to an upper-level control system, it can also achieve intelligent control, further enhancing automation.
The advantages of the servo motor lie in its efficiency, stability, and precision, particularly in scenarios that require repeated starts and strict flow control. For example, in the cosmetics industry, accurate liquid filling is crucial for maintaining product quality, and the precise control provided by the servo motor ensures the accuracy of every filling cycle.

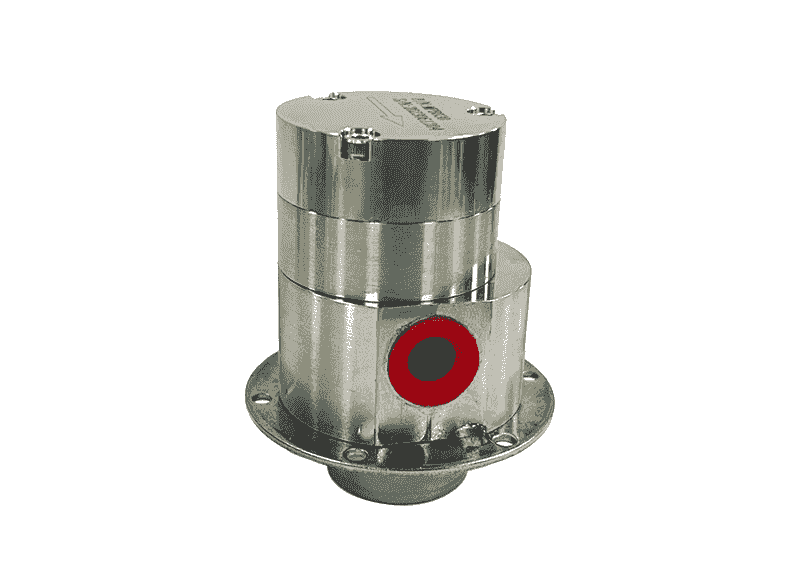

Advantages of the Gear Pump: High Precision and Durability
Gear pumps are known for their high precision and durability, making them ideal for applications that require strict liquid transfer control. This gear pump has a displacement of 0.9ml/rev and a flow range of 0-5.4L/min, allowing it to adapt to various operational requirements.
316L Stainless Steel Pump Body: Offers excellent corrosion resistance, making it suitable for transferring various chemical liquids.
PEEK Gear Material: Provides outstanding wear resistance and high-temperature performance, ensuring the pump's long-term operational stability.
PTFE Static Sealing: Offers superior chemical resistance, enhancing the pump's durability.
Versatile Applications
This gear pump finds broad applications in chemical metering, cosmetics filling, life sciences, and more. Below are some specific application examples:
Cosmetics Industry: In cosmetics production, precise ratios of ingredients and accurate liquid filling are essential. This gear pump’s precise control, enabled by the servo motor, ensures the desired accuracy for each filling, minimizing waste and errors.
Chemical Metering: In the chemical industry, many liquids are corrosive, and precise metering is critical. The 316L stainless steel pump body and PEEK gear material ensure stable, long-term operation even in harsh environments.
Life Sciences: In pharmaceutical and biotech industries, the accuracy of liquid transfer directly affects research and production outcomes. This gear pump can achieve highly precise liquid transfer, meeting the high standards of the life sciences field.
The WSFSGE0.9-400W Servo Motor Gear Pump is an ideal solution for liquid transfer and metering applications due to its high precision, durability, and intelligent control capabilities. Whether in cosmetics filling, chemical metering, or life sciences, this product demonstrates excellent performance and reliability. Through the precise drive of the servo motor and the superior design of the gear pump, this equipment provides an efficient and accurate solution for modern industrial applications.
If you are looking for a liquid transfer device with high precision, durability, and intelligent control, this gear pump is undoubtedly the ideal choice.
